Name: Centralita Powerbox: Source
Brand: Powerbox-Systems
SKU: PBS.3420
Price: 169.00 EUR
Availability: InStock

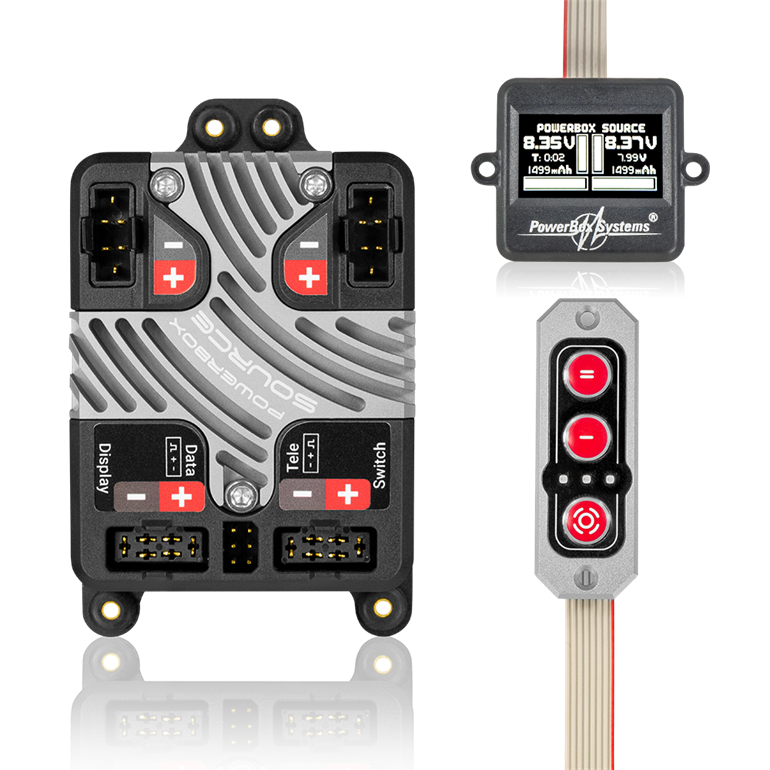

Centralita Powerbox: Source

€169,00

Impuestos incluidos.

Temporalmente sin stock - Entrega en unos días

SKU: PBS.3420

Fabricante: Powerbox-Systems

Descripción

Es una evolución de la Base Log cuyas funciones eran similares.

Incorpora telemetría para el estado de las baterías, consumos, y permite seleccionar el voltaje de salida deseado para el receptor y servos.

Novedad: Ahora por el mismo precio incluye la pantalla

Martin Pickering

Alto rendimiento
Grandes disipadores de calor
Reducido tamaño
Pantalla OLED, de 128x64 pixeles
Voltaje de salida programable: 5,9v 7,4v 7,8v o 8,4v sin regular
Compatible con todo tipo de batería: LiPo/LiIon, NiMh/NiCd, LiFePo
Programable con CORE, SensorSwitch, BlueCom o USB
Telemetría compatible con CORE P2Bus, Jeti EXBus, Futaba Sbus2, Multiplex MLink, Graupner Hott y JR DMSS
Reguladores redundantes
Filtrado y eliminación de corrientes generados desde los servos
Protección contra descarga estática
Actualizable mediante BlueCom o USB

Descripción:

The PowerBox Source is a logical development of the successful BaseLog, taking due account of requests from customers and modern telemetry system requirements. We have managed to reduce the backer’s size by optimising the heat-sink design, and as a result the PowerBox Source is now also suitable for small models with high power requirements. This small energy package offers enormous performance reserves, and compares very well even with larger battery backer systems.
The unit can be connected to an optional small O-LED screen which provides a display of all battery data even when the backer itself is inaccessible in the model. However, the full capability of the PowerBox Source can still be exploited even without the screen: the Data socket enables the user to access all settings either using a smartphone and a BlueCom Adapter, or a laptop or PC using our USB interface.
Core pilots, in particular, can control all aspects of the PowerBox Source from the transmitter without any extra accessories.
Reflecting the current state of technology, all battery-relevant data can now be transferred to the transmitter via the telemetry system. The PowerBox Source can transfer telemetry data to Jeti, Graupner, Multiplex and Futaba transmitters as well as the Core telemetry system. An additional teleconverter is not required for Futaba.
The PowerBox Source can be set to any of four different output voltages: 5.9 V – 7.4 V – 7.8 V and unregulated; in the latter case the battery voltage is passed through with minimal loss. The MPX inputs and outputs are fitted with retaining clips / lugs to prevent the connectors slipping out when subjected to severe vibration.
